Recitation 1

Today we’ll go over Phase 1, mostly covering logistics and deliverables. We’ll also discuss and introduce the C++ programming language.

Table of contents

Announcements
1. Miniquizzes
2. Office Hours
Phase 1 Overview
Intro to C++ (Part 1)
Conclusion

Announcements

Miniquizzes

Miniquiz #2 is due tonight, September 8th at 11:59pm.
Miniquiz #3 is due tomorrow night, September 9th at 11:59pm.
Going forward, miniquizzes will be assigned at the start of each lecture day and will (generally) be due at 1pm the following weekday.

Office Hours

Permanent Office Hours are still being sorted out. The intention is that office hours will be every Tuesday and Thursday from 4-6pm.
Tomorrow, Tuesday, September 9th, office hours will be temporarily held in 32-397 from 4-6pm.

Phase 1 Overview

Have a working C++ program that can determine whether or not a particular MITScript program is syntactically valid or not.

We can think about this as containing two smaller subtasks: scanning (also called lexing) and parsing. This phase won’t cover any semantics—that’s the goal of interpretation in Phase 2. This includes anything in the language specification past section 1.

Scanning

The scanning phase takes raw MITScript code as input and transforms it into a list of tokens.

This process involves breaking down the continuous stream of characters into meaningful units such as keywords (like if, while, global), identifiers (variable and function names), operators (like +, -, ==), literals (numbers, strings), and punctuation (parentheses, semicolons, and so on).

The scanner skips over whitespace and comments. Each token, represented by a C++ class, will contain both what kind of token it is and its textual value.

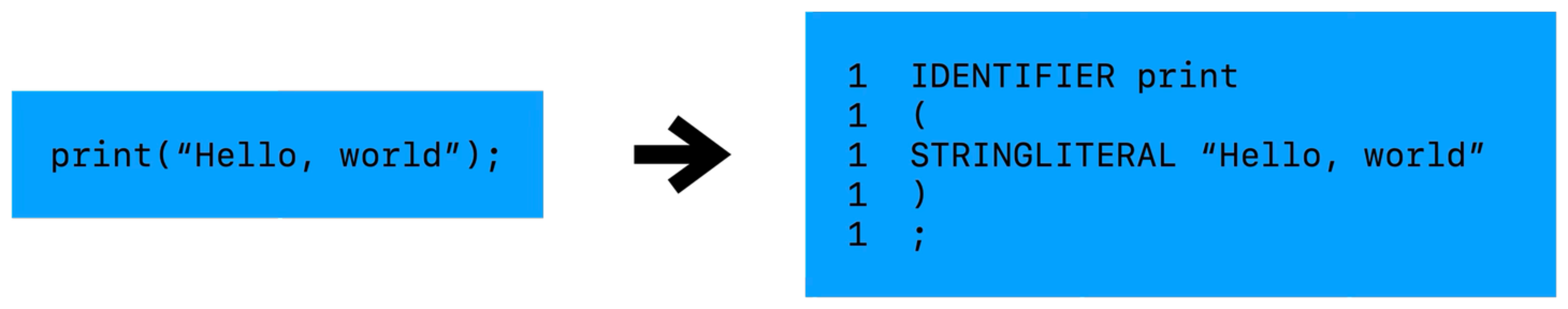

Example of scanning process. — Figure 1: Example of the scanning process.

Specification

When you run ./run.sh scan <filename> on a lexically valid input file, it should:

Exit with return code 0 (in UNIX-land, this means the program succeeded)
Output a list of tokens, one per line, with the line that token starts on
For identifiers and literals, show the type (string STRINGLITERAL, integer INTEGERLITERAL, and booleans BOOLEANLITERAL)

When you run ./run.sh scan <filename> on a lexically invalid input file, it should:

Exit with a non-zero return code (in UNIX-land, this means the program failed)
The autograder won’t check the output, but you should output an error message to stderr

Parser

The parsing phase takes in a list of tokens, produced by the scanner, and transforms it into a data structure called an abstract syntax tree (AST) which encapsulates the syntactic structure of the program.

This process involves analyzing the sequence of tokens to determine if they form a valid program according to the grammar given in the language specification. The parser recognizes patterns like function definitions, variable assignments, control flow statements (if-else, while loops), and expressions, organizing them into a hierarchical tree structure.

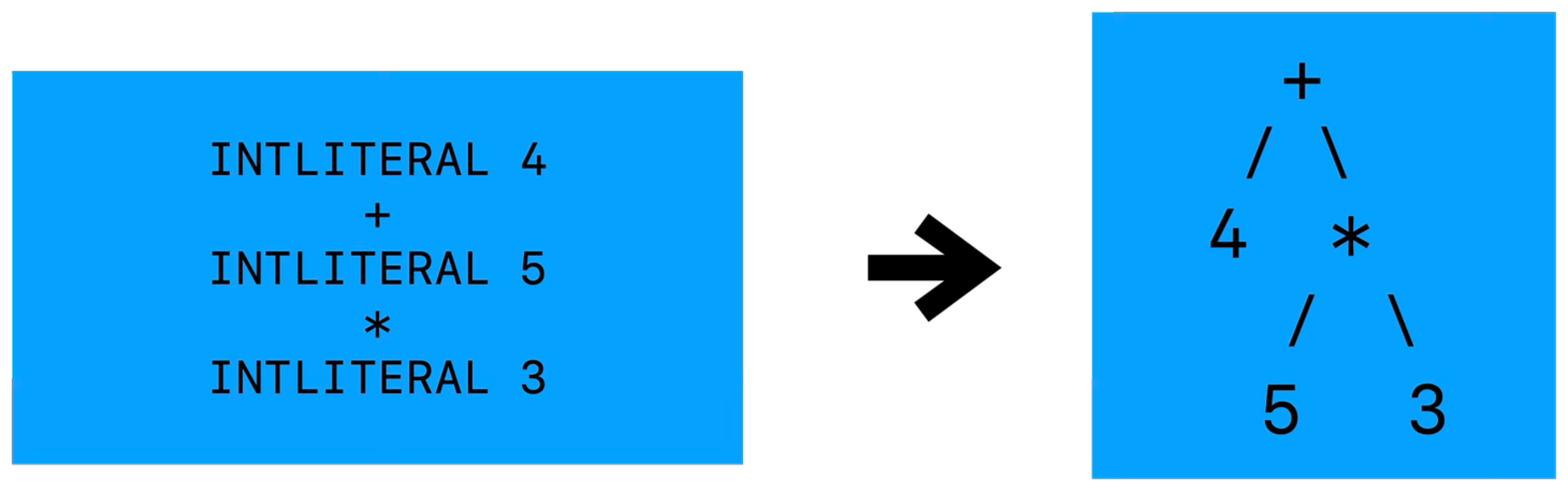

Figure 2: Example of the parsing process.

Specification

When you run ./run.sh parse <filename> on a syntactically valid input file, it should:

Exit with return code 0 (in UNIX-land, this means the program succeeded)
The autograder won’t check the output, but you should pretty-print some visualization of your AST to stdout

When you run ./run.sh parse <filename> on a syntactically invalid input file, it should:

Exit with a non-zero return code (in UNIX-land, this means the program failed)
The autograder won’t check the output, but you should output as many errors as possible to stderr

You should implement the Visitor pattern for your AST data structure in this phase. Although we won’t explicitly grade it, it’s extremely helpful for this phase and absolutely necessary for the next:

Building a pretty printer for your AST
Building a recursive interpreter in Phase 2

We’ll cover the Visitor pattern in more detail in the following two recitations.

Submission and Grading

Phase 1 is worth 5% of the overall grade in this course. It’s due at 10pm (not 11:59pm) on Monday, September 22nd.

You’ll be required to submit the following deliverables on Gradescope:

Code Submission (autograded). This will include about 200 scanner tests and about 200 parser tests (many private). You can see your score at any time, but not the details of the particular test case that’s failing.
Short report (1-2 paragraphs)
10 additional test cases of your own

At this point, you should have received an invite to join the course organization (6112-fa25). We’ve created a repo for each person for the first two phases. This repo should be your kerberos.

If you don’t have access to either the repo or the class organization, please let us know immediately. Make sure to accept the invite for both the repository and organization!

We provide public test cases in the 6112-fa25/tests repository. At some point after each phase completes, we’ll update the repository with the private tests for that phase. We’ll also add the public tests for the upcoming phase.

We have a preliminary Python script that runs the tests against your interpreter. You’ll need to expand this yourself for later phases.

Intro to C++ (Part 1)

C++ is a statically-typed, high-level general purpose programming language with powerful low-level and high-level abstractions. The low-level abstractions allow us to manipulate underlying hardware resources at a very fine granularity. The high-level abstractions allow us to express a wide breadth of high-level ideas such as polymorphism or higher-order functions.

Hello, World!

Let’s begin by writing our first C++ program, which prints “Hello, world!” to the console.

// FILE : main.cpp
#include <iostream>

int main(int argc, char *argv[]) {
    std::cout << "Hello, world!" << std::endl;
    return 0;
}

Already, there are a few things of note about this program.

We include the <iostream> library, which allows us to use the std::cout and std::endl objects.
- #include is a preprocessor directive that tells the compiler to include the contents of the file specified in the angle brackets.
We define the main function, which is the entry point of the program.
- int main(int argc, char *argv[]) is the signature of the main function.
- argc is the number of arguments passed to the program.
- argv is an array of C-style strings, each representing an argument passed to the program.
We use the std::cout object to print “Hello, world!” to the console.
- std::cout is the standard output stream.
- std::endl is the standard end of line.
We return 0 to indicate that the program exited successfully.

Now, let’s compile and run the program.

g++ -o hello main.cpp
./hello

Command Line Arguments

Let’s look at command line arguments. When you run a program, you can pass additional arguments to it:

// FILE : main.cpp
#include <iostream>

int main(int argc, char *argv[]) {
    for (int i = 0; i < argc; i++) {
        std::cout << argv[i] << std::endl;
    }
    return 0;
}

argc is the number of arguments (including the program name)
argv is an array of strings containing each argument
argv[0] is the program name, argv[1] is the first argument, etc.

Let’s compile and run the program:

g++ -o hello main.cpp
./hello

Functions

Let’s define a function that multiplies two command line arguments:

// FILE : main.cpp
#include <iostream>

int multiply(int a, int b) {
    return a * b;
}

int main(int argc, char *argv[]) {
    int a = std::stoi(argv[1]);
    int b = std::stoi(argv[2]);
    std::cout << multiply(a, b) << std::endl;
    return 0;
}

int multiply(int a, int b) defines a function that takes two integers and returns an integer
std::stoi() converts a string to an integer
Running ./multiply 5 3 outputs 15

Let’s compile and run the program:

g++ -o multiply main.cpp
./multiply 5 3

Pointers

An extremely powerful tool in C++ is the pointer. Pointers are variables that contain the memory address of another variable.

// FILE : pointer.cpp
#include <iostream>

int main(int argc, char *argv[]) {
    int a = 5;
    int *b = &a;
    std::cout << *b << std::endl;
}

In this program, we define an integer variable a and a pointer to an integer variable b. We set b to the address of a. We then print the value of *b, a pointer dereference, which is the value of a.

Let’s compile and run the program:

g++ -o pointer pointer.cpp
./pointer

Stack and Heap

Understanding memory management is crucial in C++. There are two main memory regions:

Stack:

Automatic memory management - variables are created and destroyed automatically
Fast access, limited size
Used for local variables, function parameters, and return addresses
Memory is freed when variables go out of scope

Heap:

Manual memory management - you control when memory is allocated and freed
Larger size, slower access
Used for dynamic data structures and large objects
Memory persists until explicitly freed

Let’s see the difference with examples:

// FILE : memory.cpp
#include <iostream>

int main(int argc, char *argv[]) {
    // Stack allocation - automatic
    int stack_var = 42;
    int *stack_ptr = &stack_var;  // Points to stack memory

    // Heap allocation - manual
    int *heap_ptr1 = new int(100);  // C++ style
    int *heap_ptr2 = (int*)malloc(sizeof(int));  // C style
    *heap_ptr2 = 200;

    std::cout << "Stack value: " << stack_var << std::endl;
    std::cout << "Stack via pointer: " << *stack_ptr << std::endl;
    std::cout << "Heap value 1: " << *heap_ptr1 << std::endl;
    std::cout << "Heap value 2: " << *heap_ptr2 << std::endl;

    // CRITICAL: Must free heap memory to avoid memory leaks
    delete heap_ptr1;      // Free C++ allocated memory
    free(heap_ptr2);       // Free C allocated memory

    // stack_var and stack_ptr are automatically freed when main() ends
    return 0;
}

Let’s compile and run:

g++ -o memory memory.cpp
./memory

Conclusion

In the next two recitations, we’ll cover more C++ features and a small demo on implementing a lexer/parser for phase 1.

Here are some C++ resources to explore on your own:
